In today’s industrial automation landscape, precision motion control is the cornerstone of efficient production and quality assurance. As a leading manufacturer of gear boxes and transmission solutions with over two decades of expertise, we understand the critical role that selecting the right drive system plays in overall performance. This technical guide explores how worm gear reducers deliver unmatched advantages in motion control applications across diverse industries.
Technical Advantages of Worm Gear Reducers
Worm gear reducers represent a specialized category of gear boxes that offer unique characteristics unmatched by conventional transmission systems:
High Reduction Ratios
Single-stage worm gear reducers achieve reduction ratios from 10:1 to 80:1, with specialized designs reaching 100:1 or higher. This eliminates the need for multi-stage configurations in applications requiring substantial speed reduction, simplifying system architecture and reducing potential failure points.

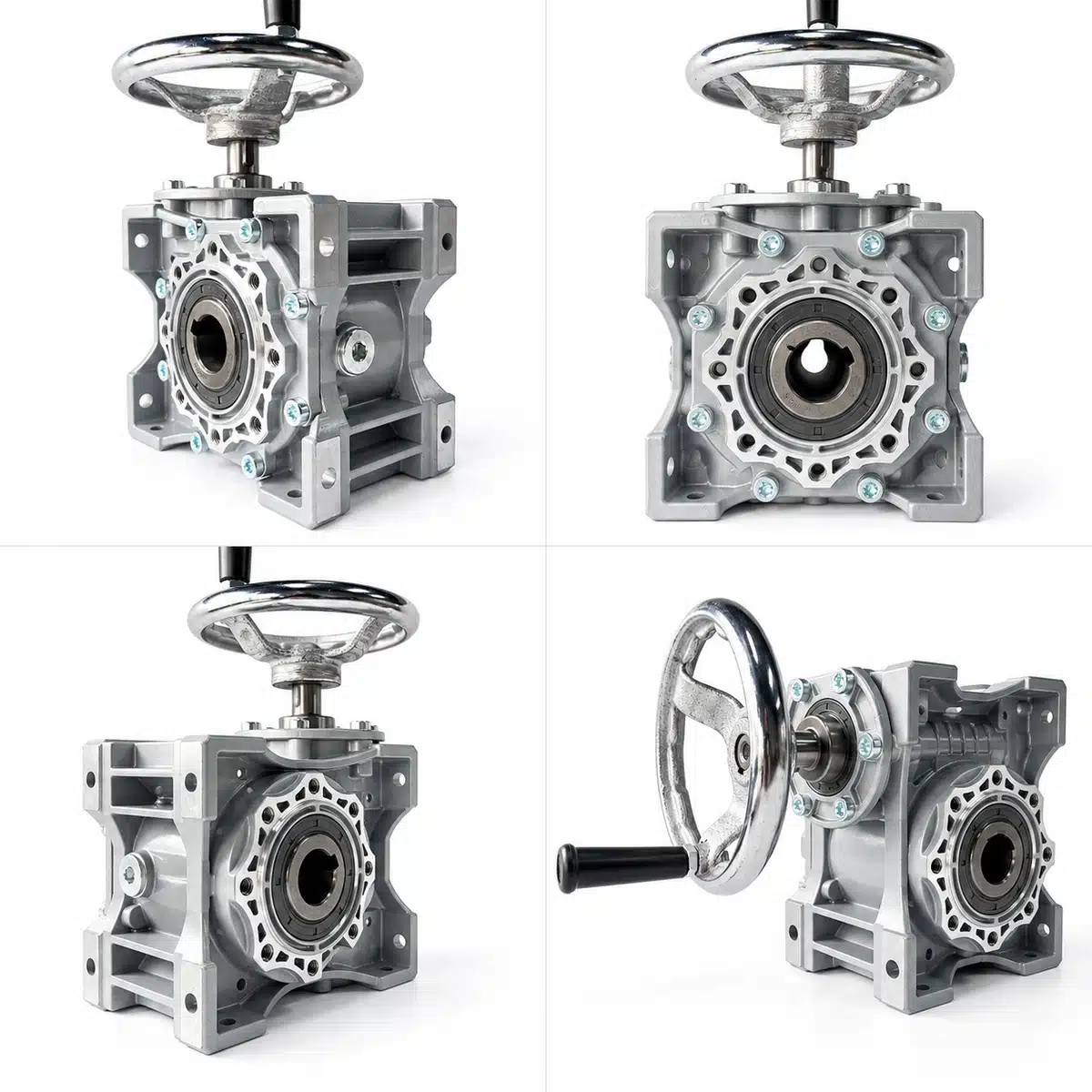

Self-Locking Capability
When the worm’s lead angle is less than the friction angle, the system exhibits inherent self-locking properties. This feature is critical for vertical lifting, position holding, and safety-critical applications—eliminating the need for additional braking mechanisms while ensuring load security.
Smooth and Silent Operation
The sliding contact between worm and wheel creates exceptionally smooth transmission with vibration and noise levels significantly lower than conventional gear boxes. This makes worm gear reducers ideal for medical equipment, precision instruments, and noise-sensitive environments.
Compact Design
The perpendicular shaft arrangement allows worm gear reducers to occupy 30-50% less space than parallel-shaft gear boxes while transmitting equivalent torque—a crucial advantage for equipment miniaturization.
Key Application Scenarios for Motion Control
1. Stage Machinery and Entertainment Systems
In theater stage lift systems, turntables, and lighting rigging, our worm gear reducers provide irreplaceable motion control solutions. The self-locking feature ensures performer and equipment safety—even during power interruptions, stage platforms remain securely positioned. Low-noise operation preserves performance quality.
Our customized WHS-series gear boxes for a prestigious theater, paired with servo motors, achieve variable speed control from 0.1mm/s to 500mm/s with positioning accuracy of ±0.5mm—perfectly meeting complex stage effect requirements.
2. Packaging Machinery
Food, pharmaceutical, and cosmetic packaging lines require precise motion control for filling head elevation, sealing device positioning, and conveyor belt tension control. Our compact worm gear reducers integrate seamlessly into confined spaces, working with stepper or servo motors to deliver rapid response and accurate positioning.
A dairy manufacturer using our WHX-series gear boxes improved packaging line positioning accuracy by 40%, increasing product qualification rates from 92% to 98.5% while doubling maintenance intervals.
3. Solar Tracking Systems
Dual-axis solar photovoltaic tracking systems demand reliable all-weather operation, withstanding wind loads while achieving precise angular adjustment. Our outdoor-rated worm gear reducers feature specialized sealing and weather-resistant lubrication, operating reliably from -40°C to +80°C.
High reduction ratios (typically 40:1 to 60:1) paired with low-power motors drive large PV arrays with slow, precise solar tracking. Self-locking properties ensure automatic position holding during high winds without additional energy consumption.
4. Medical Equipment Motion Control
CT examination table elevation, surgical table positioning, and rehabilitation equipment require paramount safety and precision. Our medical-grade worm gear reducers undergo special surface treatments meeting medical device cleanliness standards, utilizing food-grade lubricants for absolute safety.
A prominent medical equipment manufacturer implementing our WHM-series gear boxes achieved surgical table positioning repeatability of ±0.1mm with operating noise below 45dB—fully satisfying stringent operating room requirements.
5. Automated Warehousing
Stacker cranes in automated storage systems, AGV steering mechanisms, and automatic sorting flipper devices leverage worm gear reducers for their compact dimensions and reliable performance. Particularly in applications requiring frequent start-stop cycles and precise positioning, pairing with high-response servo systems achieves exceptional operational efficiency.
Motion Control System Integration Solutions
As specialized manufacturers, we provide comprehensive motion control solutions beyond standard products:
Motor Compatibility
Our gear boxes seamlessly interface with servo motors, stepper motors, and brushless DC motors through standard flange connections and multiple input shaft configurations.
Controller Integration
Compatible with mainstream PLCs and motion controllers, supporting pulse, analog, and fieldbus control methods for closed-loop position, velocity, and torque control.
Sensor Integration
Optional incremental or absolute encoders, temperature sensors, and vibration sensors enable condition monitoring and predictive maintenance.
Custom Engineering
Special operating conditions accommodated through non-standard reduction ratios, custom output shafts, explosion-proof designs, and extreme temperature adaptations.
Selection Guidelines for Gear Boxes
When selecting worm gear reducers for motion control applications, consider these critical factors:
1. Load Characteristics: Define rated torque, peak torque, load inertia, and select appropriate safety factors (typically 1.5-2.0)
2. Motion Parameters: Determine required reduction ratio, output speed range, and positioning accuracy requirements
3. Duty Cycle: Continuous or intermittent operation, starts per hour, and duty cycle percentage
4. Environmental Conditions: Temperature range, humidity, corrosive exposure, and cleanliness requirements
5. Mounting Configuration: Foot mounting, flange mounting, or shaft-mounted arrangements
6. Maintenance Requirements: Lubrication method (grease or oil), maintenance intervals, and wear part replacement
Technical Support and Services
As an industry-leading worm gear reducer manufacturer, we provide comprehensive technical support:
- Selection Engineering: Professional engineers assist with load analysis and product selection
- 3D CAD Models: STEP, IGES formats provided for seamless system integration design
- Performance Testing: Full-load testing before shipment with detailed performance curves and inspection reports
- Field Commissioning: Technical personnel deployment for on-site installation and commissioning support
- Extended Warranty: Standard 18-month warranty on catalog products, customized solutions eligible for 24-month coverage
Conclusion
In the Industry 4.0 era of smart manufacturing, precision motion control demands continue escalating. Worm gear reducers demonstrate irreplaceable value across numerous applications through unique technical advantages. As specialized manufacturers of gear boxes, we remain committed to continuous R&D investment and performance optimization, delivering increasingly reliable and efficient transmission solutions.
If you face transmission selection challenges in motion control system design, contact our technical team for professional consultation and customized solutions tailored to your specific requirements.
This technical reference material is subject to our latest product catalogs and technical specifications. Contact us for detailed engineering data.
