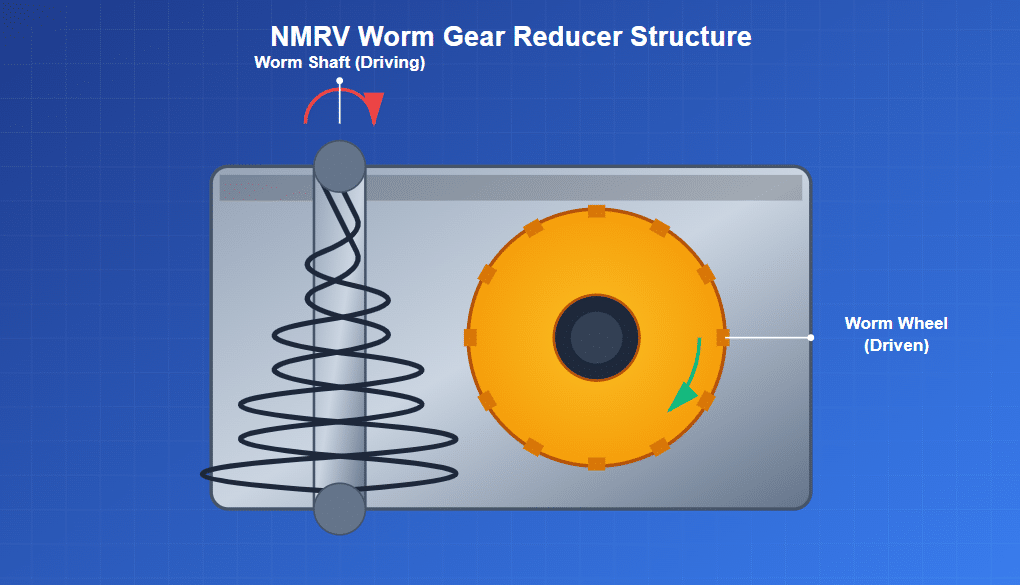

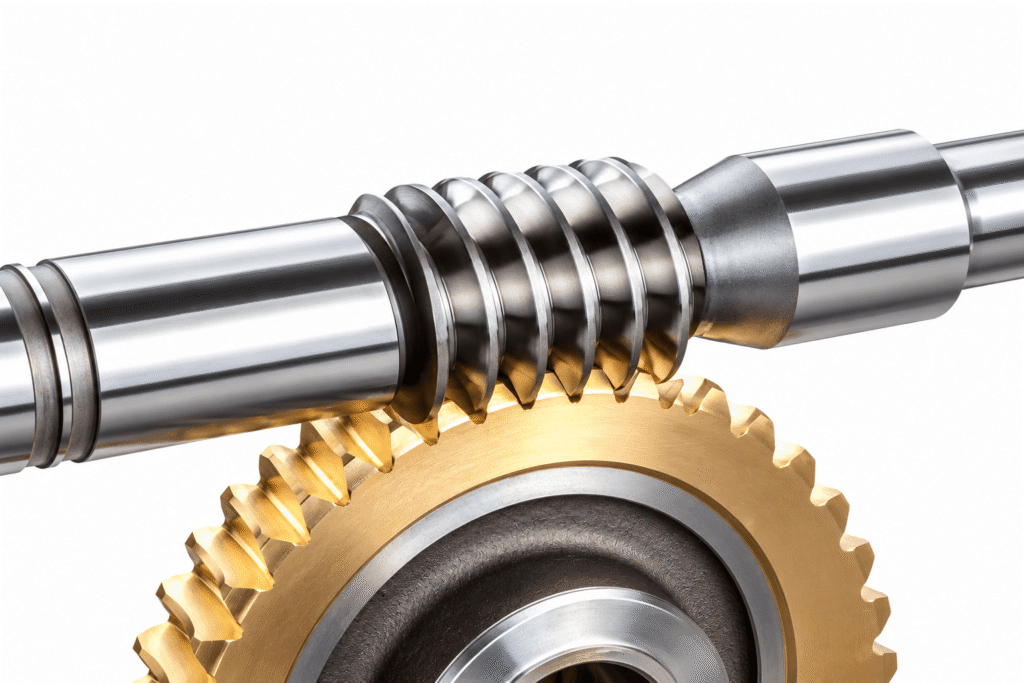

Structurally, the NMRV worm gear reducer primarily consists of a worm wheel and a worm shaft. The worm shaft is typically the driving component, while the worm wheel is the driven component. As the worm shaft rotates, its helical teeth mesh with the teeth of the worm wheel, driving the worm wheel and achieving speed reduction. This structure enables the reducer to achieve a large transmission ratio within a relatively small space. The NMRV worm gear reducer is a mechanical transmission device widely used in industry. Its unique structure and operating principle contribute to its numerous features and diverse application scenarios.
NMRV worm gear reducers offer several notable features. Firstly, their high transmission ratio is a key advantage. Typically, ratios range from 10 to 80, with some specially designed models offering even higher ratios. This large ratio means that even in applications requiring a significant speed reduction, a single NMRV worm gear reducer can meet the need, eliminating the need for complex multi-stage transmission structures and simplifying the overall equipment design.
Secondly, the NMRV worm gear reducer offers smooth operation and low noise. This is due to the meshing mechanism of the worm wheel and worm shaft, which provides continuous sliding friction during transmission, unlike the transient shock and vibration experienced in gear transmission. This smooth transmission characteristic enables the reducer to excel in environments with high noise and vibration requirements. For example, in applications such as precision equipment, food processing machinery, and textile machinery, noise and vibration generated by the equipment’s operation do not affect product quality or disrupt the working environment.
Furthermore, the reducer exhibits excellent self-locking properties. When the worm’s helix angle is less than the equivalent friction angle of the meshing surfaces, the worm gear mechanism self-locks, meaning that only the worm can drive the worm wheel, while the worm wheel cannot drive the worm. This feature is particularly useful in situations where reverse rotation must be prevented. For example, in lifting equipment, when a load is lifted to a certain height, even if the power source suddenly stops or malfunctions, the self-locking effect of the worm gear prevents the load from falling, thus ensuring the safety of both equipment and personnel.
Furthermore, the NMRV worm gear reducer boasts a compact structure and small size. Compared to other types of reducers, it occupies less space when compared to other types of reducers, providing the same transmission ratio and load capacity. This offers significant advantages for equipment and locations with limited installation space. For example, in small automated production lines, medical equipment, and aerospace equipment, the compact structure allows for a more rational layout and improves space utilization.
NMRV worm gear reducers are used in numerous industries. In the manufacturing industry, they are widely used in various machine tools. For example, in lathes, milling machines, drilling machines, and other processing equipment, NMRV worm gear reducers can precisely control the feed speed of the worktable and the speed of the spindle, ensuring machining accuracy and product quality. They are also indispensable transmission components in automated production lines, driving conveyor belts, robotic arms, and other devices to ensure accurate material transportation and efficient product assembly.
In the construction industry, NMRV worm gear reducers are commonly used in construction equipment such as tower cranes and construction elevators. In tower cranes, they convert the high-speed rotation of the electric motor into low-speed, high-torque output suitable for the hoisting and luffing mechanisms, ensuring the crane can lift heavy loads smoothly and safely. Construction elevators utilize them to raise and lower the car, ensuring the safe transportation of personnel and materials between building floors through precise speed control.
NMRV worm gear reducers also play an important role in agriculture. For example, in agricultural irrigation equipment, they can be used to reduce the speed of water pumps, allowing them to operate at an appropriate speed and ensuring a stable water supply to the irrigation system. Furthermore, in some agricultural machinery, such as feed mixers and grain dryers, NMRV worm gear reducers can achieve rational power distribution and precise speed adjustment, thereby improving agricultural production efficiency.
In the transportation industry, NMRV worm gear reducers are also used in some specialized vehicles and equipment. For example, in electric forklifts, they drive the wheel deceleration and steering mechanisms, enabling forklifts to maneuver flexibly in confined spaces like warehouses while ensuring sufficient torque and stability when lifting cargo. In railway turnout switches, NMRV worm gear reducers transmit motor power to the turnout switching mechanism, enabling accurate and reliable turnout switching and ensuring safe train operation.
In the environmental protection industry, NMRV worm gear reducers are often used in sewage treatment equipment. For example, in sewage mixing equipment, they can drive the agitator blades to rotate at an appropriate speed, thoroughly mixing various substances in the sewage and improving sewage treatment efficiency. In sludge dewatering equipment, NMRV worm gear reducers drive the screw, ensuring smooth sludge dewatering.
NMRV worm gear reducers are widely used in various industrial and civilian fields due to their unique structure and numerous advantages. With the continuous advancement of technology, their performance is constantly improving and optimizing. In the future, they will play an important role in more fields and make greater contributions to the development of various industries.

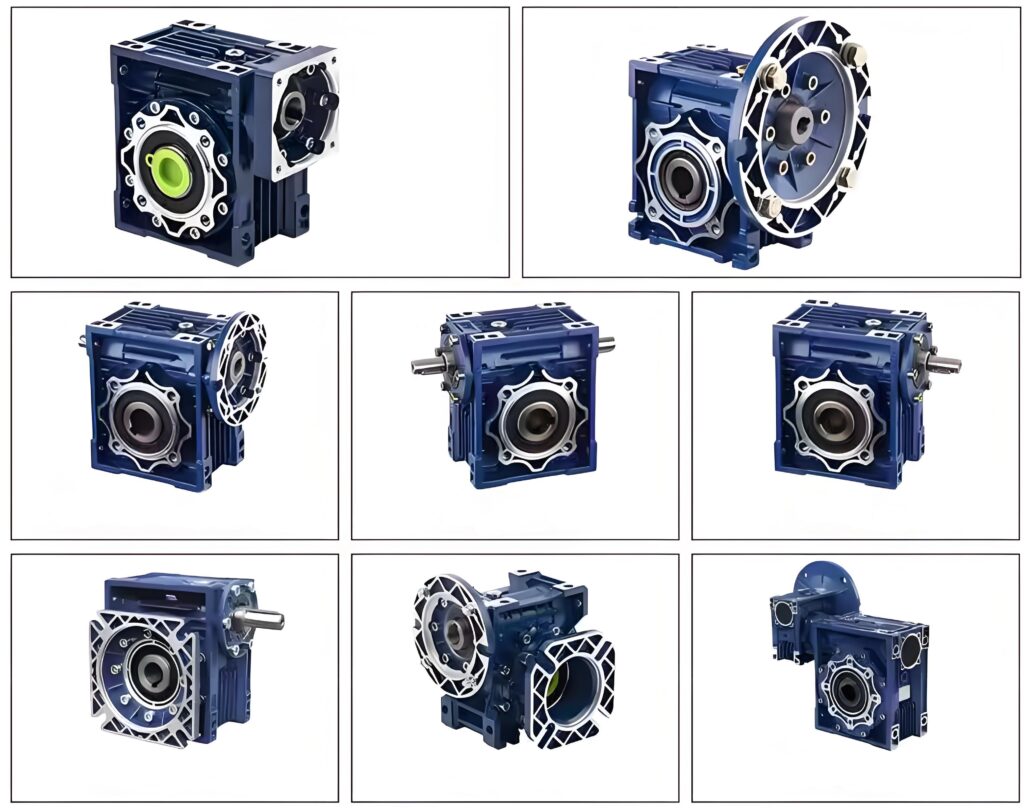

If you are looking for a Chinese supplier of NMRV worm gear reducer, don’t hesitate to contact us! We can offer different solutions for you:
- NMRV worm gear reducer with Square Input flange
- NMRV worm gear reducer with Round Input flange
- NMRV worm gear reducer with NEMA Input flange
- NMRV worm gear reducer with Dual input with motor connector
- NMRV worm gear reducer with Dual input shafts
- NMRV worm gear reducer with Single input shaft
- NMRV worm gear reducer with Single input shaft and output flange
- NMRV worm gear reducer with Round Input flange and square output flange

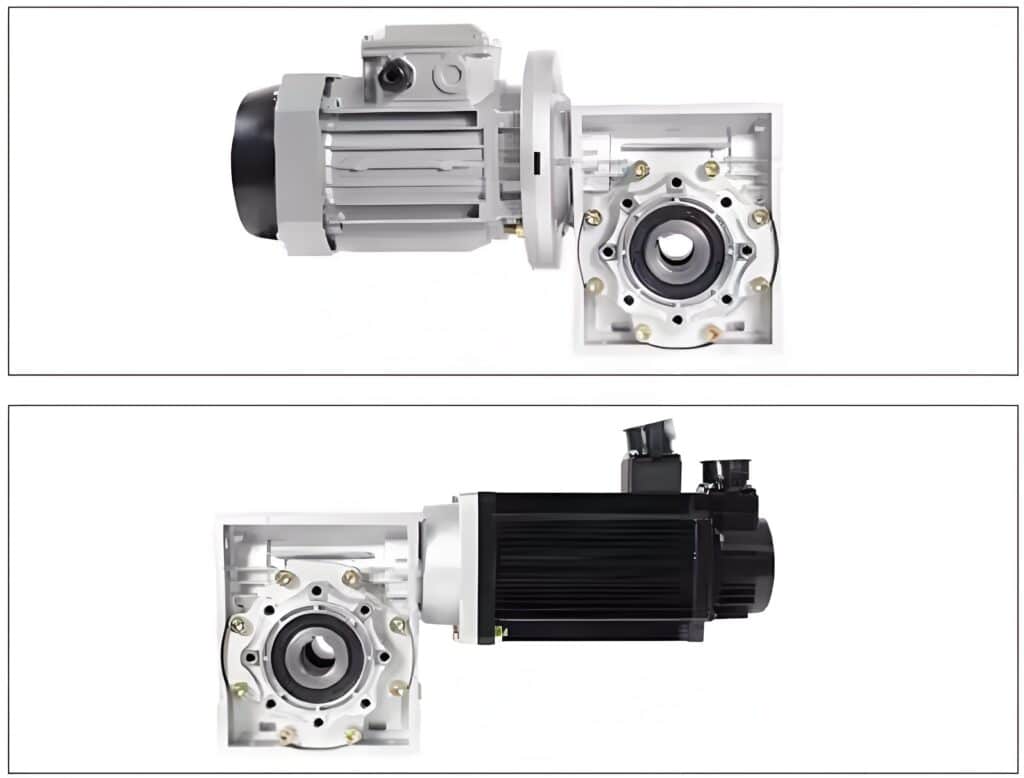

- NMRV worm gear reducer with 3-phase electric motor
- NMRV worm gear reducer with stepping motor / servo motor
